Dimensions scheme can be found in the photos section above.



Specifications:

Inducer (A)	67mm
Exducer (B)	99mm
Blade height (C)	28.95mm
Total height (D)	45mm
Tip height (E)	6.3mm
Shaft diameter (F)	8mm
Tit diameter (G)	78.3mm
Tit height (H)	6.3mm
Blades	7+7 split blade
Material	Billet aluminum
Brand	TurboSystems



Attention! Although every compressor wheel is balanced, after mounting it on your turbocharger make sure to perform a VSR balancing to eliminate any instability from assembled unit.





Compatibility:

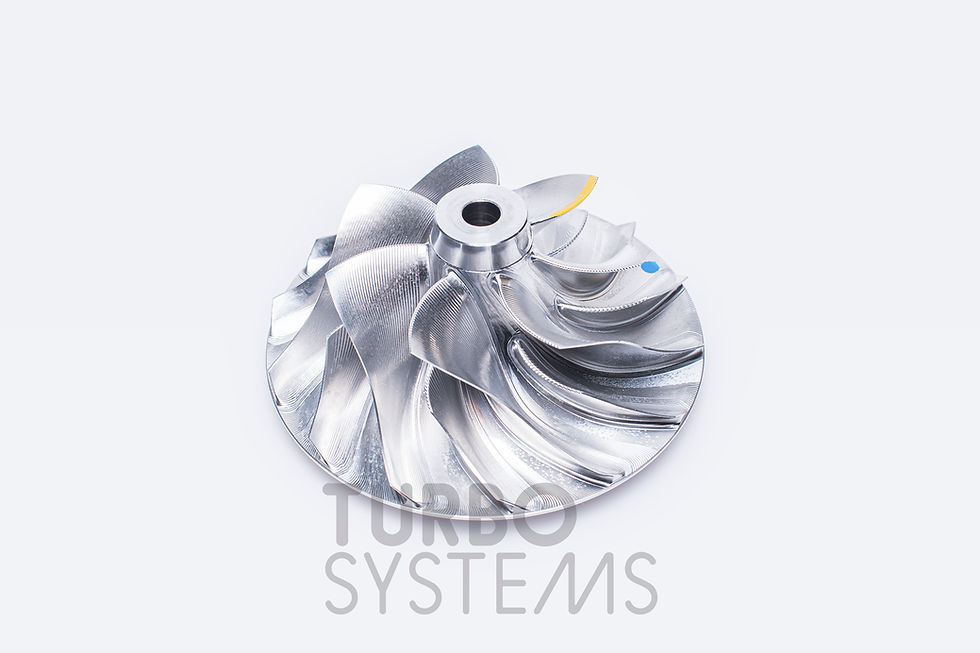

This Turbosystems billet compressor wheel fits Volvo MD11, MD13, HW1.5, P3216, Detroit diesel DD16, Cummins QSG12, Liebherr D946, Scania DL6 turbochargers.



OE nr.: 2841370



OE Turbocharger nr.: 21989987, 21989961, 21989979, 21900655, 21989985, 21906630, A4730961099, 10139624, 2242114, 17408191, 22810425, 22810420, 22332491, 22350193, A4730961599, 22767397, A4730961899, A4730962099, A4730962199, 5359438, A4730962299, 28200-84CA0, VOE17408191, 23159639, 23009845, 23009844, 23005661, 23005696, 23009001, 5605811, 17502609, A4730962399, 5604467



OEM Turbocharger nr.: 3786854H, 3786856H, 4031291H, 3786523H, 3786852H, 3786244H, 3786241H, 3786242H, 5322457, 3784356, 5456125, 5322450, 3795222, 3788513, 5456124, 5322446, 3795223, 3788512, 3795222, 5322452, 3784358, 5329248, 5322493, 3790860, 3789534, 3794685, 3794687, 5495560, 3783758, 3784357, 3782549, 3797598, 3798488, 5327063, 5352051, 5353086, 3784358, 5637906, 5502290, 3795976, 5637905, 5502289, 3795975, 3799360, 5457187, 5457189, 5457190, 5639344, 5350409, 5358028, 5358030, 5351572, 5355344, 5355342, 5355345, 5454826, 5504043, 5454828, 5454830, 5456335, 5548057, 5503323, 5550973, 5555598, 5455538, 5637910, 5602230, 5455602, 5602226, 5455603, 5637911, 5602228, 5455604, 5637912, 5602229, 5455605, 5455606, 5602231, 5605810, 5548586, 5456125, 5454674, 5605446,

We can fabricate non-standard compressor wheels on demand according to your needs. Contact us.
