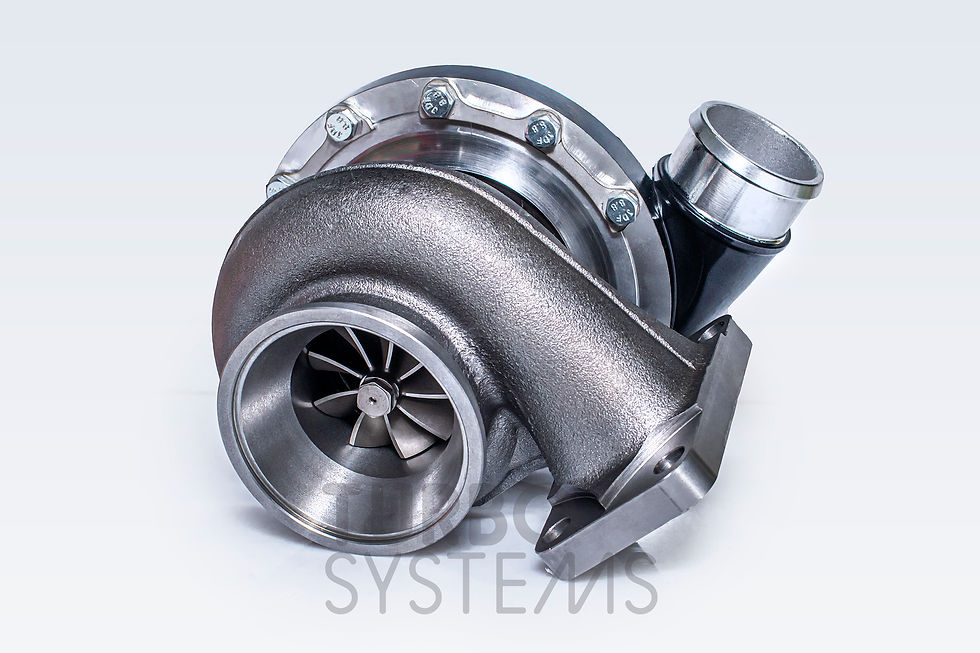

HTS3057B2 universal turbocharger

HTS3057B2 universal turbocharger

SKU: HTS3057B2
€750.00Price

* Price is shown without VAT and shipping costs.



Power range: 300-450 HP

Core: dual ceramic ball bearing



HTS version created for lower boosts and quicker spool. Recommended boost up to 1.5 - 1.7bar. High performance turbocharger designed for heavy loads and high temperature. Dual ceramic ball bearing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use.

  • Basic information

    • Cooling: Water cooled bearing housing with 2 M14x1.5 ports
    • Bearings: Dual ceramic ball bearings
    • Compressor air Intake diameter: 63mm (2,5")
    • Compressor air Outlet diameter: 51mm (2")
    • Flange: T3
    • Exhaust connection: 3" V-band clamp
    • Ported shroud compressor housing
    • AN4 oil inlet with integrated oil restrictor
  • Compressor side

    • Compressor wheel: 6+6 blades machined from the solid billet
    • Inducer: 57mm
    • Exducer: 71mm
  • Turbine side

    • Housing: 10cm2 / AR: 0.73
    • Turbine wheel: 9 blades
    • Inducer: 60mm
    • Exducer: 55mm
