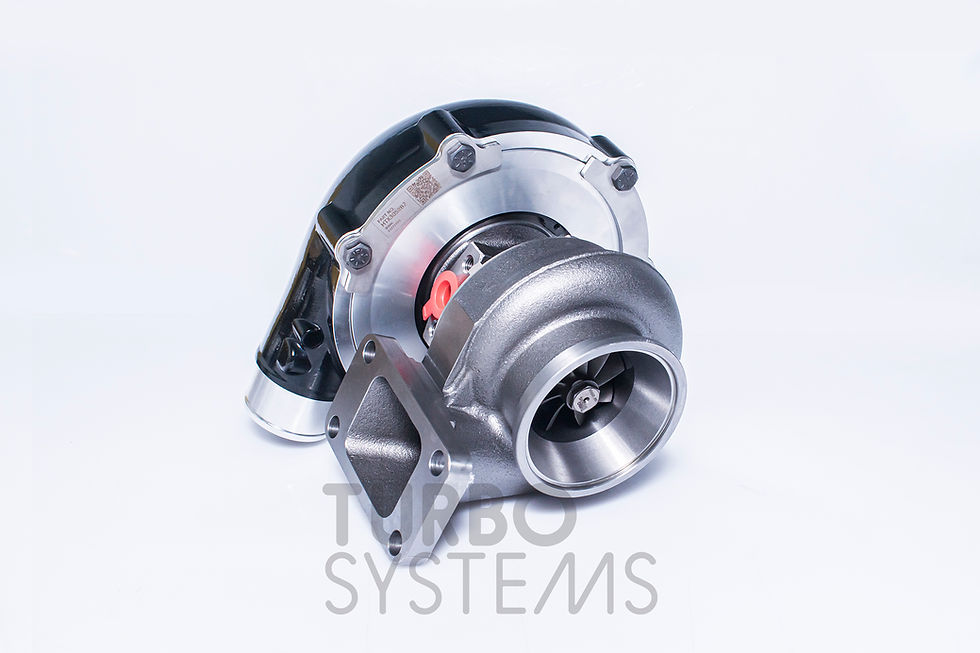

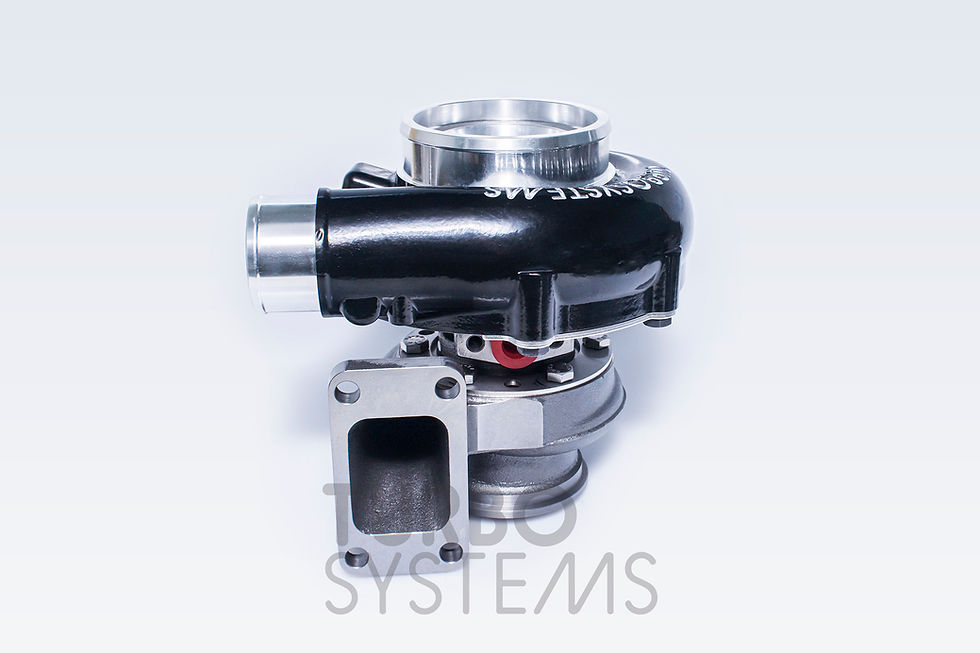

HTX3058B2 universal turbocharger
* Price is shown without VAT and shipping costs.
Specifications
High performance turbocharger with 8cm2, 0.61 AR T3 single scroll turbine housing designed for heavy loads and high temperature. Dual ceramic ball bearing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use.
- Power range: 450-650 HP;
Compressor side:
- Ported shroud compressor housing;
- Compressor wheel: in-house made, reinforced 58/72 mm 9+0 blades machined from the solid aluminium;
- Intake: 101mm (4");
- Air outlet: 51mm (2");
Core:
- Bearings: dual ceramic ball bearings;
- Cooling: water cooling with 2 x M14x1.5 ports;
- Lubrication: AN4 oil inlet with integrated oil restrictor;
Turbine side:
- Housing: single scroll, 8cm2 AR: 0.61;
- Turbine wheel: custom design 60/55mm 9 blades;
- Flange: 3" T3 single scroll;
- Exhaust connection: 3" V-band clamp;
Not sure which turbocharger to choose? Check out our HTX turbos specs page for quick comparison.
